Streamlining Complex UIs: Building Tabbed Detail Screens in React

In the haroldCoder/school_management project, a key task was to create a comprehensive course detail screen. This screen needed to present a wealth of information and management options—from course materials to student lists and Q&A—all while maintaining a clean and intuitive user experience. The challenge was to integrate these distinct functionalities without overwhelming the user or making the codebase unmanageable. The solution involved implementing a tabbed interface, a common and effective pattern for organizing multifaceted views.

The Challenge of Complex Detail Views

When a single entity, like a 'Course', demands multiple sub-sections for management (e.g., materials, student rosters, discussion forums), a monolithic display quickly becomes cumbersome. Users would have to scroll endlessly or navigate through several distinct pages, leading to a fragmented experience. Our goal was to consolidate these related but separate concerns into a single, accessible view.

Architecting with Tabs in React

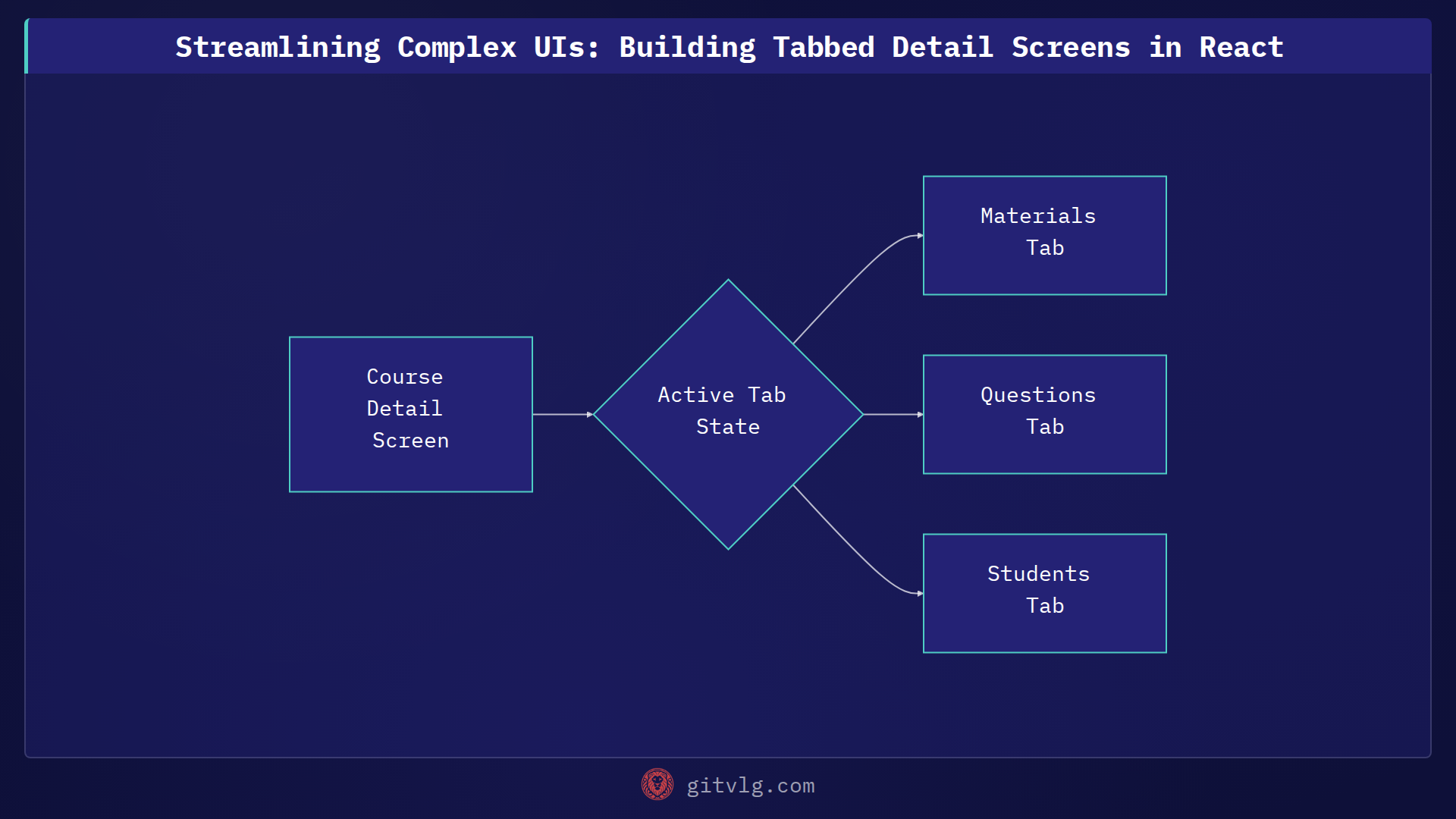

To achieve this, we leveraged React's component-based architecture to create a CourseDetailScreen that acts as an orchestrator for several child components, each representing a tab's content. A simple state variable manages which tab is currently active, and conditional rendering ensures only the relevant content is displayed. This approach aligns well with principles like Hexagonal Architecture, where the UI (presentation layer) is responsible for displaying data and handling user input, while the underlying domain logic and data fetching for each tab can remain separated and focused.

Here’s a simplified TypeScript example demonstrating the core structure:

import React, { useState } from 'react';

type TabName = 'materials' | 'questions' | 'students';

const CourseDetailScreen: React.FC = () => {
  const [activeTab, setActiveTab] = useState<TabName>('materials');

  const renderTabContent = () => {
    switch (activeTab) {
      case 'materials': return <CourseMaterialsTab />;
      case 'questions': return <CourseQuestionsTab />;
      case 'students': return <CourseStudentsTab />;
      default: return null;
    }
  };

  return (
    <div>
      <h1>Course Title</h1>
      <nav className="tab-navigation">
        <button onClick={() => setActiveTab('materials')}>Materials</button>
        <button onClick={() => setActiveTab('questions')}>Questions</button>
        <button onClick={() => setActiveTab('students')}>Students</button>
      </nav>
      <div className="tab-content">
        {renderTabContent()}
      </div>
    </div>
  );
};

// Placeholder components for each tab
const CourseMaterialsTab: React.FC = () => <div>Course materials list...</div>;
const CourseQuestionsTab: React.FC = () => <div>Student questions and answers...</div>;
const CourseStudentsTab: React.FC = () => <div>Enrolled student directory...</div>;

export default CourseDetailScreen;

This pattern allows each tab's content component (CourseMaterialsTab, CourseQuestionsTab, CourseStudentsTab) to manage its own state, data fetching, and specific UI elements independently. The CourseDetailScreen only needs to know which tab is active and render its corresponding component, keeping concerns well-separated and promoting modularity.

The Benefits of Structured UI

Implementing a tabbed interface for a complex detail screen offers significant advantages. It enhances user experience by providing a clear, organized view of related information without clutter. For developers, it promotes a modular and maintainable codebase, as each tab's functionality is encapsulated within its own component. This separation makes it easier to develop, test, and update individual sections without impacting the entire screen. The key takeaway is to embrace component composition and state management to build complex, user-friendly UIs that are also a joy to maintain. Next time you face a multifaceted screen, consider if a tabbed approach can simplify both the user's journey and your development process.
